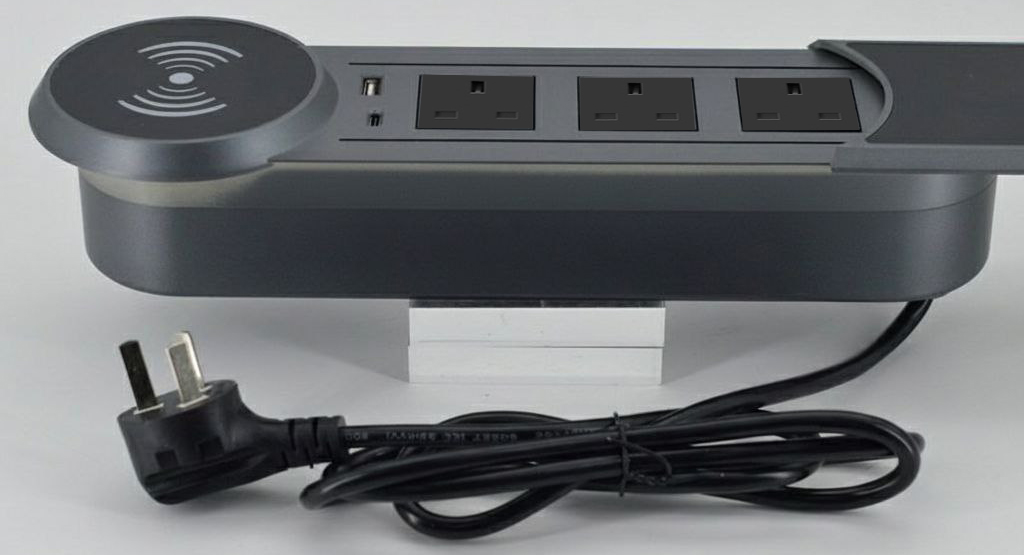

Tabletop Sliding Cover Socket BC01-3BS
| Model No | BC01-3BS |
| Type | Table wireless charge socket |
| Style | Slip Up Open Socket |
| Material | PC plastic |
| Color | Iron Grey/Black |
| Slide direction | Right Side to open |
| 3Configuration | power supply+1*Type-A+C charging+1*Wireless charging |
| Panel size | 310mm×95mm×62mm |
| Box size | 313mm×97mm×64mm |
| USB Output | USB A+C charger 5V/2A |
■ Introduction :
DA-BC01-3BS desktop socket is designed as an modern slide cover socket with muti-functional configuration,

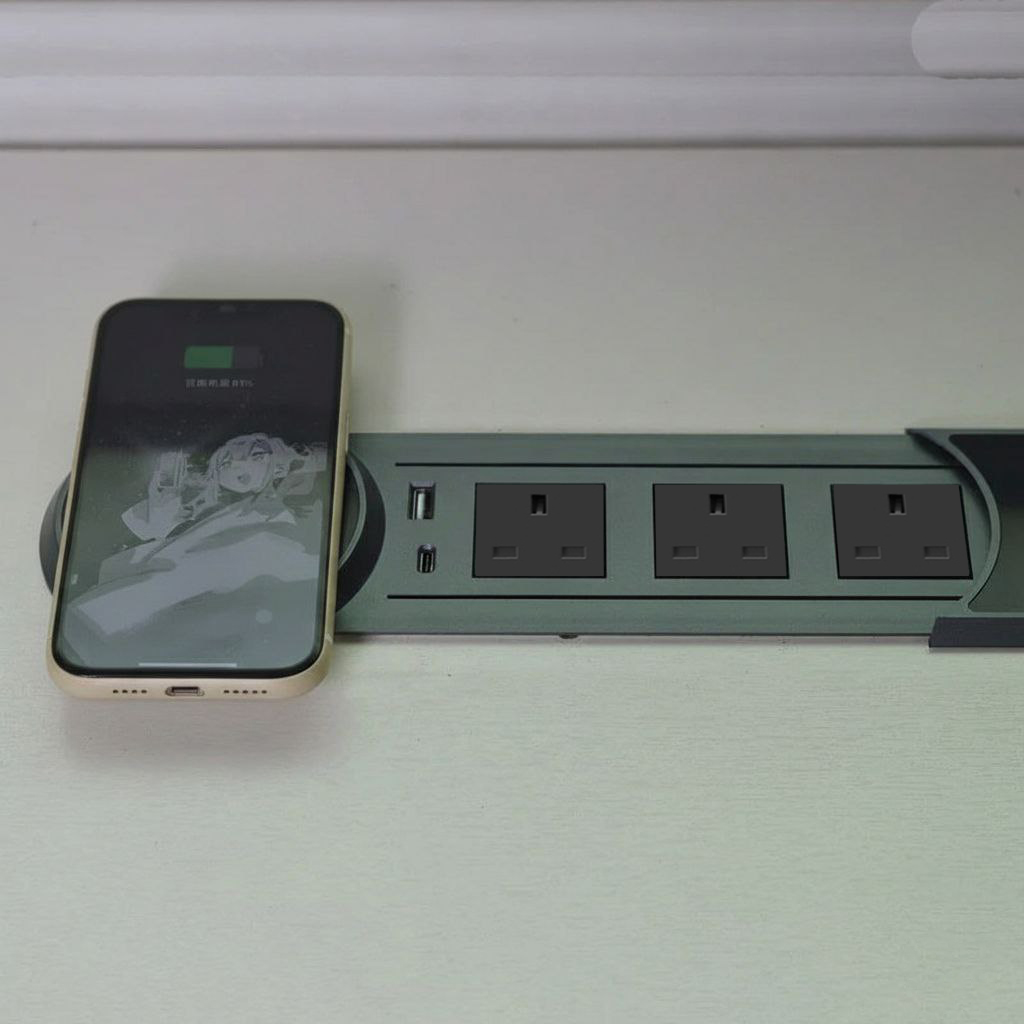

It is a hidden equipment as it is mounted on the tabletop to use and hidden into table when it is not be used.

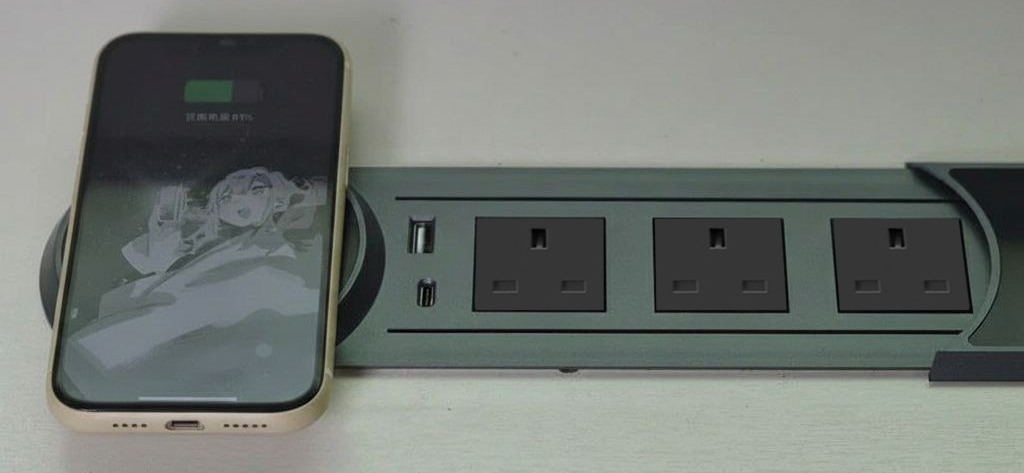

With the wireless charger connector, users could put the mobile on the charger to charge directly without wire.
For your selection, it also have USB charger connector for charging the mobile or other equipment by USB wire.
Other configuration of universal power socket ,HDMI,USB
It is a smart socket to make the electrical equipment connect easily and conveniently.
By the Slider cover design, the socket is cover by the PC plastic, users slide the cover to the right side, the socket is show up for use, easy to operate.
It’s widely used for the high-tier office table, conference room table AV solution, hotel room and training room.
■ Sailing Point :
- Manual sliding design .
- With wireless charger, change the traditional charger power code for charging .
- Hidden design to save more space and makes a modern office environment .
- Competitive price and high quality .
- Supply with double USB power charger(5V, 2.1A) .
- Made by Aluminum alloy material, which is corrosion resistant, wear-resistant, smooth surface and not easy to scratch.
- The modules can be customized as the customer’s requirement .
- Changeable configuration with different modules for selection : HDMI, VGA, USB, Network, Audio, Video, Mic, RCA, power switch.
- Easy installation, just cut out a square hole on the table and install the socket accordingly.
■ Operation Instruction :

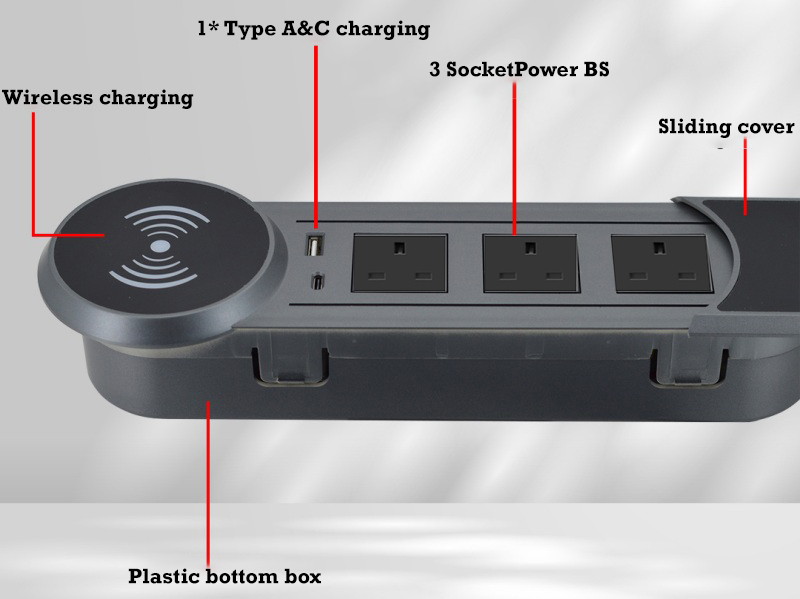

Material and design
PC plastic, beautiful appearance, environmentally friendly and durable, lightweight.
Bottom box hidden into table makes the socket flush mount into table to make the table tidy.
Single sided sliding cover, easy to operate.
DOUBLE-A focus on the good detail finishing, aim to supply the high quality product to customer.
Customized configuration
DOUBLE-A desktop socket was build with 3 x BS standard power for use electricity. Could be build with FR / US / UK/ EU standard power if request.
Having a wireless charging module
Built in 1 * USB-A * 1Type-C charging interface

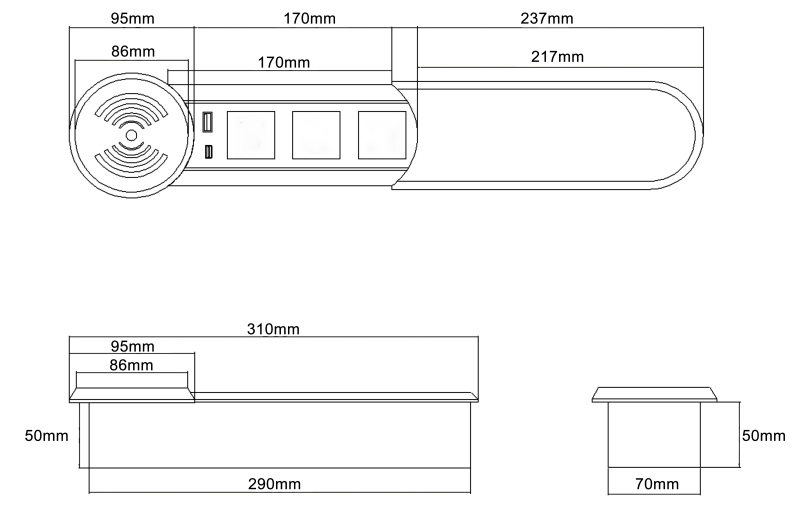

■ Dimension :

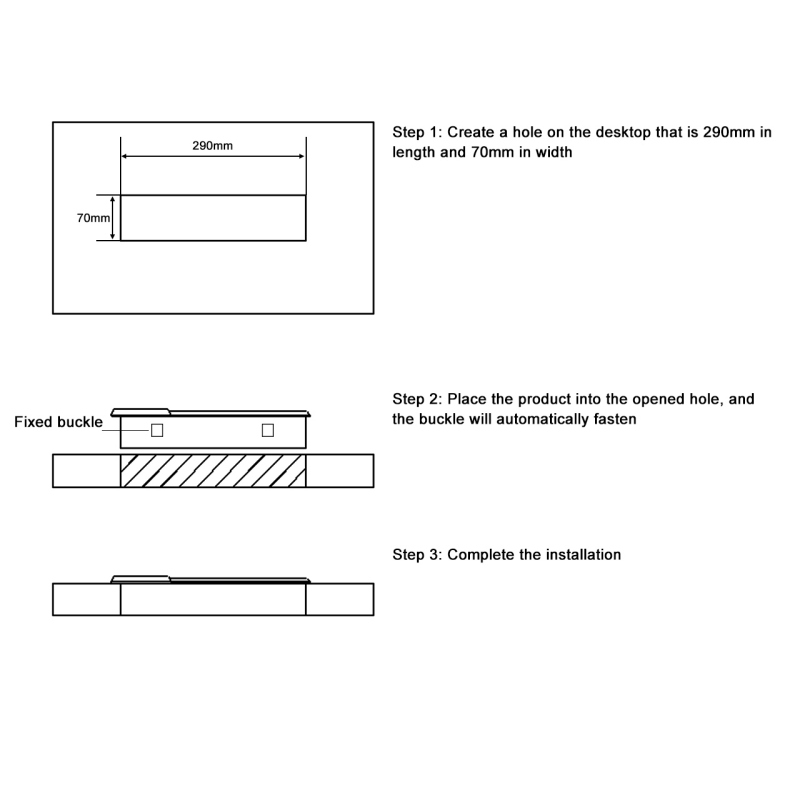

■ Installation :
