STS-SC01-Qi | Model No |
White / Black / Silver | Colors |
Aluminum Alloy | Surface panel Material |
PVC | Bottom Box Material |
4 Module | Module Capacity |
77×237 | Cutout ( mm ) |
Output 15W max | Wireless Charging |
9V | Input Voltage |
1.67A | Input Current |
2meters | Power Cable Length |
Sliding lid panel | Opening Mechanism |
Operation Instruction .:

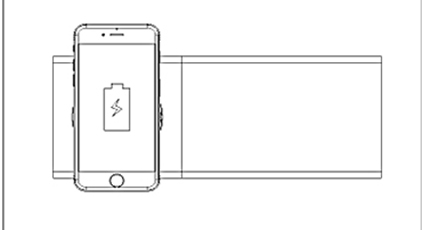

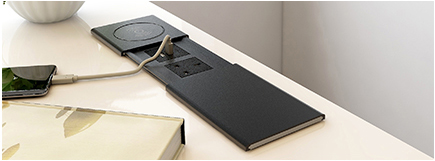

Place the device gently on the top of cover and charge . compatible with all Qi enabled devices. Make sure the center of the device is aligned over the center of the charging Base.

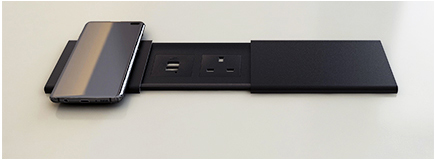

Sliding open the lid to access the power
Sliding back the lid to conceal the power outlets when not in use .

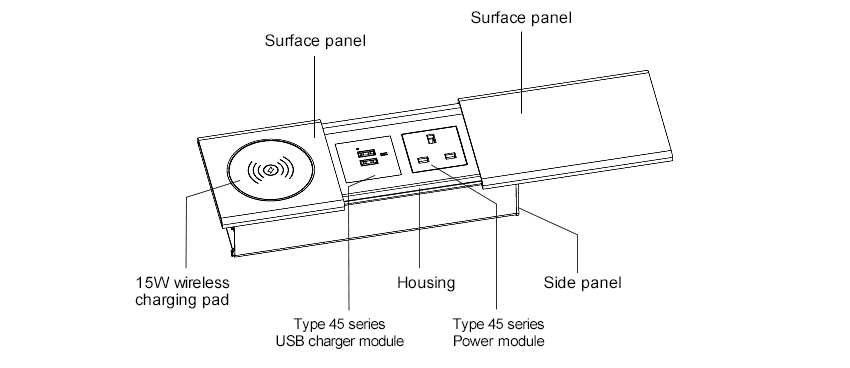

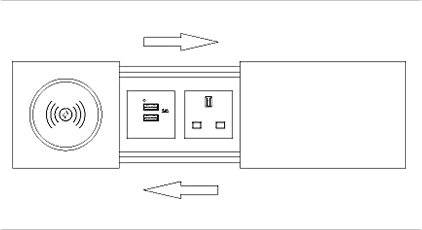

Structure chart

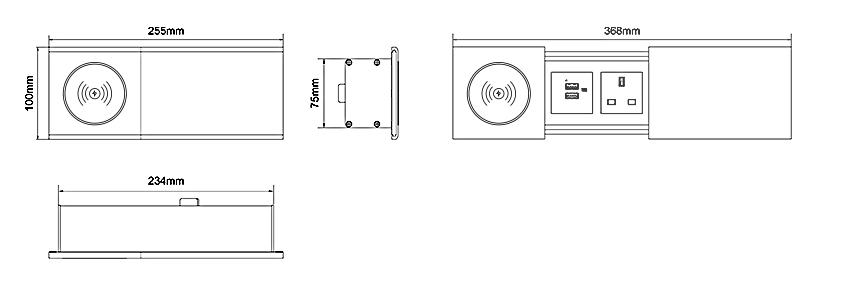

Dimension .:
