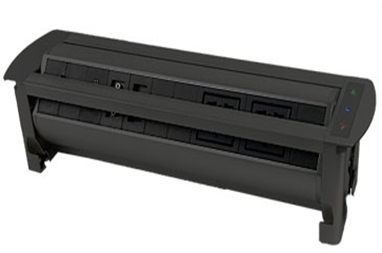

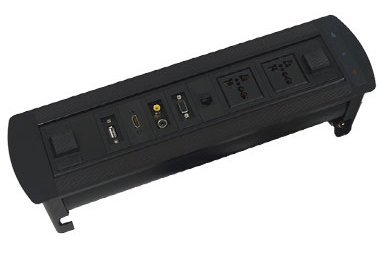

Tabletop Flip Up Connector EK9211

■ Introduce :

DA-EK series desktop socket is designed as an modern motorized flip up socket with muti-functional configuration,
it is a hidden equipment for audio video solution in office furniture. To supply a fashion and modern environment .
for office and meeting room, it can be hidden into the table automatically by touch switch .
When use the socket, just to touch the switch control, the socket panel will automatically 180 degree route from the table,

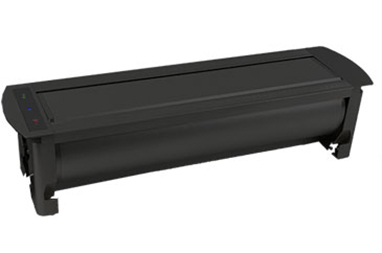

then the socket is exposed to the tabletop for use. When it is unuse, it is closed by 180 degree rotation to flush with the desktop by control the close switch.
It’s widely used for the high-tier office table, conference room table AV solution, hotel room and training room.

---

■ Sailing Point :

• Motorized flip up by motors, convenient to control .
• Hidden design to save more space and makes a modern office environment .
• Competitive price and high quality .
• Made by Aluminum alloy material, which is corrosion resistant, wear-resistant, smooth surface and not easy to scratch.
• High quality 5mm panel thickness aluminum panel surface, not easy to bend .
• 1PCS customized is available, the modules can be customized as the customer’s requirement .
• Cable length are available with different length to 1.0m ~ 5m .
• Easy installation, just cut out a square hole on the table and install the socket accordingly.

■ How to install and operation:

• Cut out a properly square hole on the table;
• Put the socket into the square hole, the connection cable hidden under the table;
• Connect the power code, manually flip up 180 degree to use .

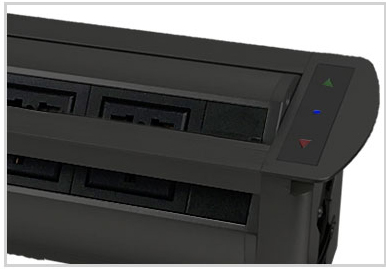

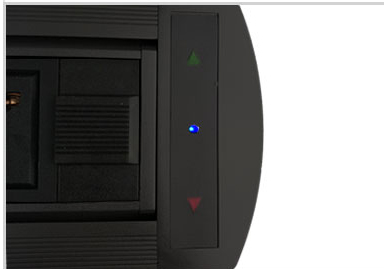

• Press the green touch button if use, the product will rotate 180 degree to the desktop.
• Press the red touch button if unused, the product will rotate 180 degree to hide under the table.

---

■ Detail Parameter

Model No.	DA-EK9211
Type	Table wireless charge socket
Style	Tabletop hidden motorized rotating power outlets
Material	Aluminum alloy surface panel + plastic hanger
Color	Silver / Black
Rotation Type	Motorized rotate

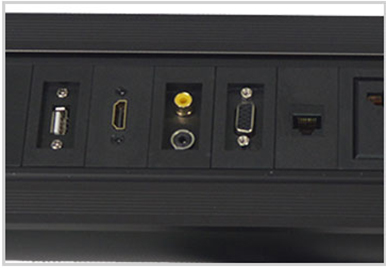

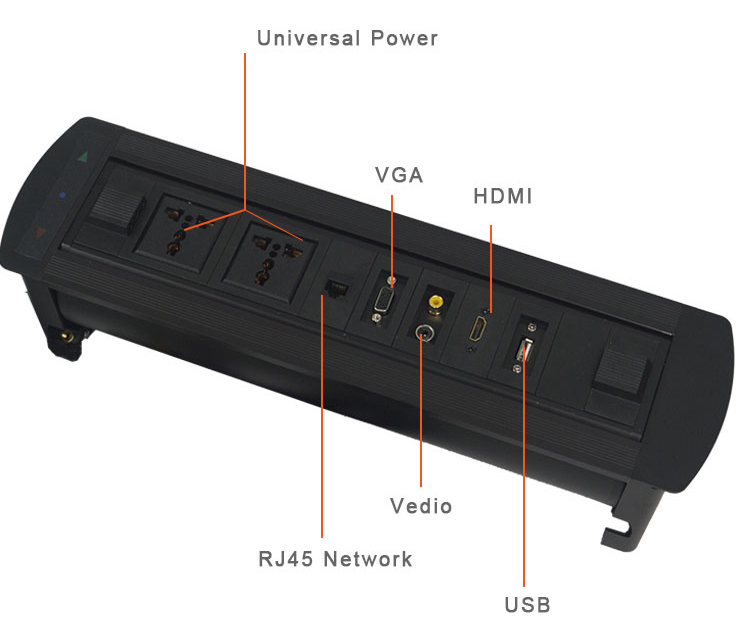

Configuration	2* Universal power +1* Network (RJ45) +1*USB+1* HDMI+1*RCA+ 1*VGA (could be customized)
Overturn angle	180 degree
Panel size	405mm*110mm
Panel thickness	235 × 90 × 5mm
Cutout size	375mm*104mm

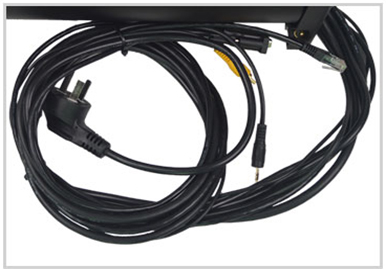

Cable length	1.5 m (Length is available from 0.3m ~ 4.0m)
Rated voltage	110V ~ 240V AC
Rated current	10 ~ 13 Amp

---

■ Structure chart :

---

■ Key Features :
