Smart Digital Lectern
Details
Name : Smart Digital Lectern
Model : YHJT-15H31P10
Screen size : 15.6”
Description

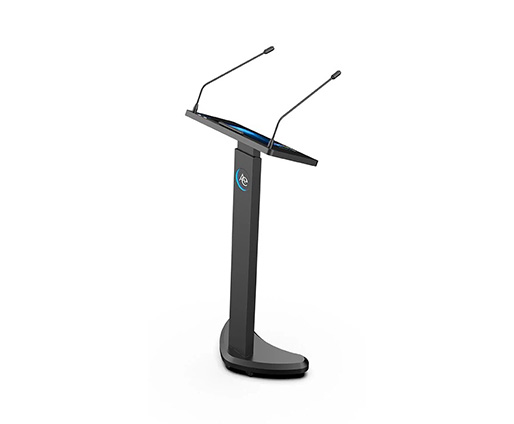

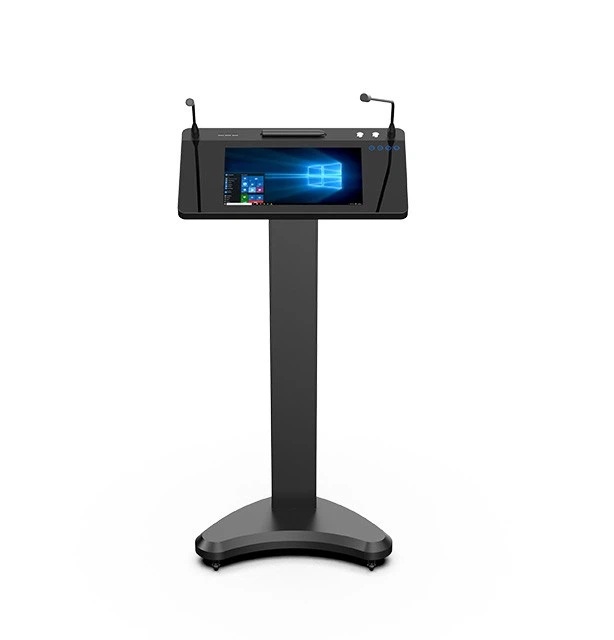

The Smart Digital Lectern is equipped with a 15.6″ anti-glare screen, you can enjoy vivid visuals and responsive touch control, even in brightly lit rooms. Streamline your setup with the integrated PC, eliminate external devices and cables for a clean, clutter-free workspace and faster startup, ready to work right out of the box.
The adjustable height stand ensures comfortable viewing and interaction for users of all statures, promoting better posture and extended usability. Capture every word clearly with the dual microphone system featuring standard XLR connectors, ensuring studio-quality sound for calls, recordings, and presentations. Included with the device is a precise electronic pen, enabling fluid writing, drawing, and annotation directly on the screen – ideal for brainstorming, teaching, or detailed work.
The Smart Digital Lectern boasts an elegant appearance that enhances any professional or creative environment. Its sophisticated design makes it a statement piece.
Specification
Display
| screen size | 15.6 inch,10 point capacity touch |
| matrix type | IPS |
| resolution | 1920*1080 |
| brightness | 400cd/㎡ |
| contrast ratio | 800:1 |
| aspect ratio | 16:9 |
| view angle | 85/85/85/85 |
| backlight lifespan | 30000 hours |
| response time | 30(Typ.)(Tr+Td)ms |
| screen tilt | 0-25°motorized adjustable |
Microphone
| stem length | 48cm |
| voice capture distance | 50cm |
| directionality | cardioid |
| frequency response | 40-16KHz |
| sensitivity | -38dB±2dB |
| output | 3-pin XLR |
| power supply | 48V phantom power |
Built-in PC
| CPU | i5-10Gen |
| RAM | 8G |
| SSD | 256G |
Electronical
| data input | USB 2.0*3 |
| output | HDMI*1, XLR*1, Audio*1 |
| power supply | AC 220V~250V 50~60Hz |
| power consumption | <200W |
Mechanism
| height | 981-113.1cm motorized adjustable |
| G.W. | 67kgs |
| packing dimension | 760*490*1420mm |
| temperature | working0℃~+50℃, storage -20℃~+60℃ |
| humidity | working≤90％, storage≤90% |
Mechanism
| power cord | Electronic pen |
