Smart Digital Lectern
Details
Name : Digital Lectern
Model : YHJT-22HPZ01
Screen size : 21.5”
Weight : 130kgs
Dimension :1200*880*1080mm
Description

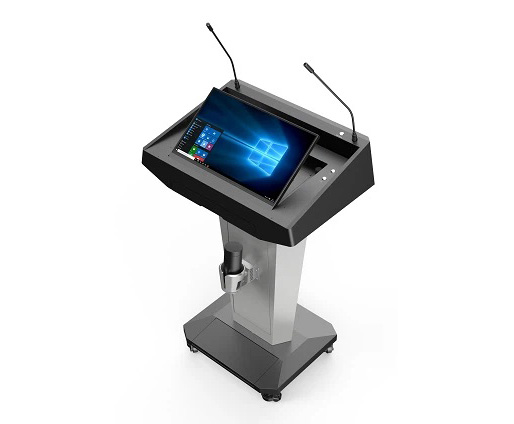

The Digital Lectern is equipped with a 21.5″ anti-glare screen and is available with a fast-responsive 10-point capacitive touchscreen. The computer is integrated into the console. Through the embedded cable cabinet, it can be flexibly input and output. It has a good integrated design. The height of this model can be adjusted. The screen also has a manually adjustable inclination angle ranging from 0-20°. It’s equipped with a storage cabinet to meet various needs in the use of the smart lectern.
The Digital Lectern is equipped with a 21.5″ 10-point touch anti-glare screen, integrated host and modular cable management, creating a minimalist and integrated collaborative terminal. The screen supports manual tilt adjustment within 0-20°, and with the hidden cable management compartment, it enables neat connection of multiple devices. The body is equipped with an intelligent storage compartment and an expansion dock, providing storage for accessories such as laser pointers and conference tablets. The all-metal body is sturdy and stable, with an elegant appearance that maintains a high-end feel, suitable for various academic, presentation, and conference scenarios.
Specification
Display
| Screen size | 21.5 inch, 10 point capacity touch |
| Matrix type | IPS |
| Resolution | 1920*1080 |
| Brightness | 250cd/㎡ |
| Contrast ratio | 1000:1 |
| Aspect ratio | 16:9 |
| View angle | 89/89/89/89 |
| Backlight lifespan | 30000 hours |
| Response time | 14(Typ.)(Tr+Td)ms |
| Screen tilt | 0-20°manually adjustable |
Nameplate
| Stem length | 43cm |
| Voice capture distance | 50cm |
| Directionality | Hyper cardioid |
| Frequency response | 40-1 6KHz |
| Sensitivity | -38dB+2dB |
| Output impedance | 200Ω |
| Power supply | 48V phantom power |
Built-in PC
| CPU | i5- 10Gen |
| RAM | 8G |
| SSD | 256G |
Electronical
| Input & output | The connector can be customized (Such as: HDMI, VGA, USB A, USB A charging Type C, DP, CAT6, Type C charging, XLR,USBAC charging, DVI 3.5 Audio) |
| Power supply | AC 220V~250V 50~60Hz |
| Power consumption | ≤200W |
Mechanism
| Height | 827-980mm motorized adjustable |
| G.W. | 130kgs |
| Packing dimension | 1200*880*1080mm |
| Temperature | working 0℃~+50℃, storage -20℃~+60℃ |
| Humidity | working ≤90％, storage ≤90% |
Accessory
| Power cord | key for cabinet |
