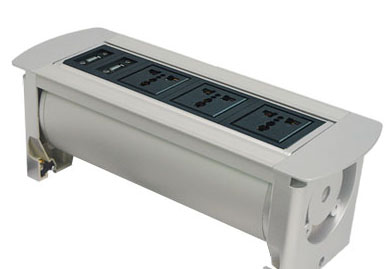

Multimedia table manual flip up socket MK6300
■ Introduce :
DA-MK series desktop socket is designed as an modern manual flip up socket with muti-functional configuration,
It is a hidden equipment as it is mounted on the tabletop to use and hidden into table when it is not be used.
Overturn clockwise the socket body by 180 degree to make the socket expose to the tabletop, the users can connect the socket for use.
At the same way, if it is unused, overturn it on anticlockwise way to make the socket hidden under the table.
The configuration is changeable with different modules for different application and requirement.

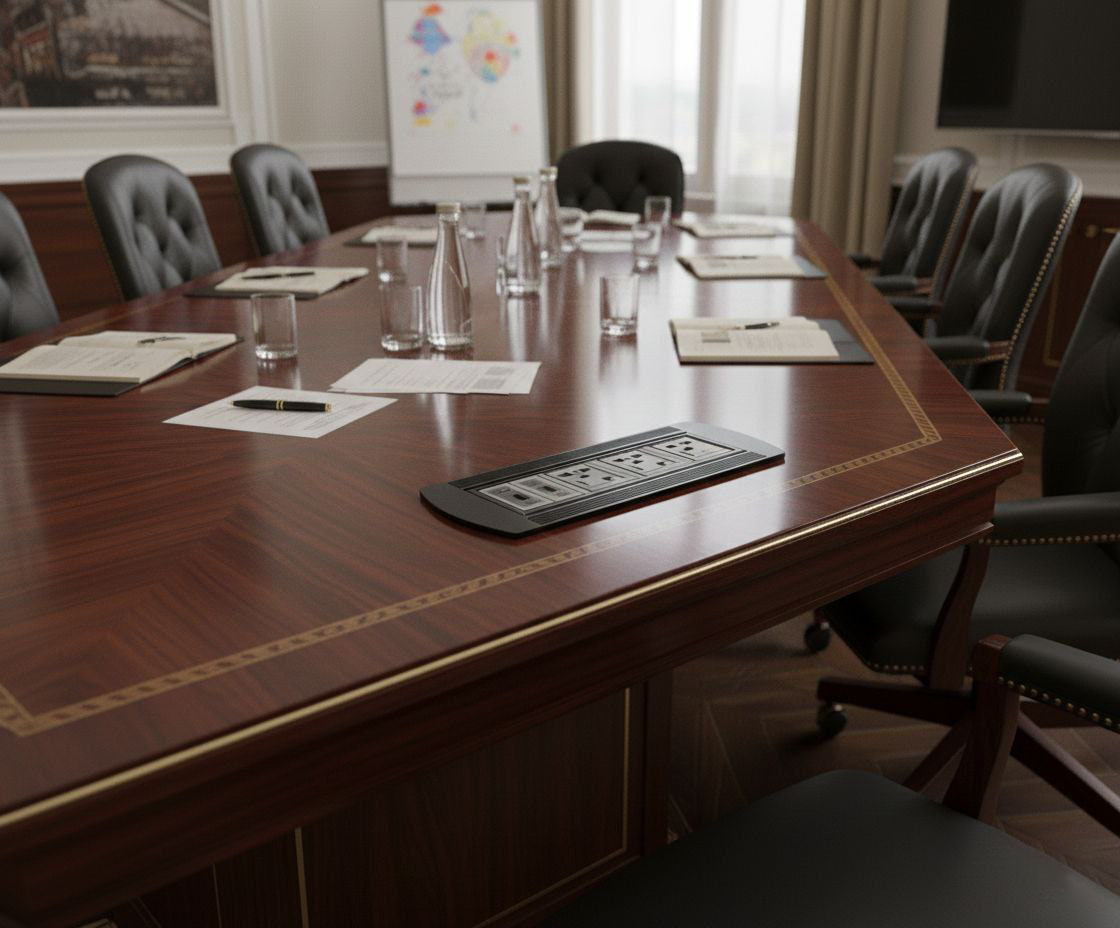

It’s widely used for the high-tier office table, conference room table AV solution, hotel room and training room.
■ Sailing Point :
- Manual flip up design ,energy saving and easy to operate .
- Hidden design to save more space and makes a modern office environment
- Competitive price and high quality .
- Made by Aluminum alloy material, which is corrosion resistant, wear-resistant, smooth surface and not easy to scratch .
- High quality 3mm panel thickness aluminum panel surface, not easy to bend .
- 1PCS customized is available, the modules can be customized as the customer’s requirement .
- Changeable configuration with different modules for selection : HDMI, VGA, USB, Network, Audio, Video, Mic, RCA, power switch .
- Easy installation, just cut out a square hole on the table and install the socket accordingly.
- Come out with 1.5M cable, support different kinds of power plug as customer’s requirement .
■ How to install and operation:
- Cut out a properly square hole on the table;
- Put the socket into the square hole, the connection cable hidden under the table;
- Connect the power code, manually flip up 180 degree to use .
■ Detail Parameter
| Model No. | DA-MK6300 |
| Type | Table Flip up Socket |
| Style | Tabletop hidden manual rotating power outlets |
| Material | Aluminum alloy surface panel + plastic hanger |
| Color | Silver / Black |
| Rotation Type | Manual rotating |

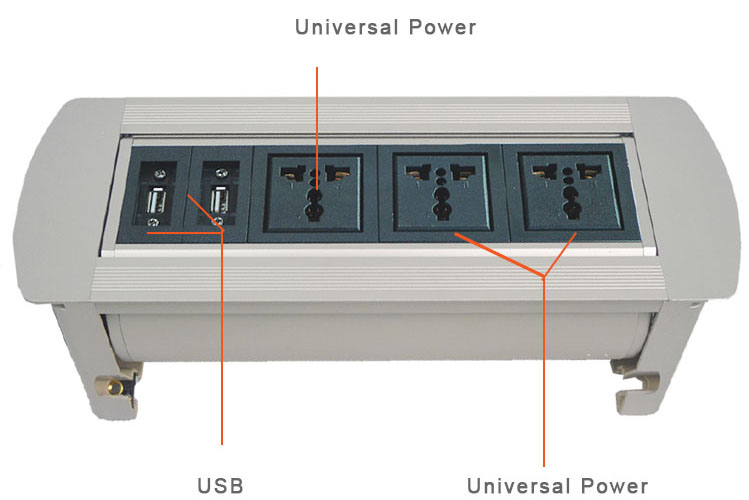

| Configuration | 3*Universal Power+2*USB charger (could be customized) |
| Overturn angle | 180 degree |
| Panel size | 299mm*110mm |
| Panel thickness | 3 mm |
| Cutout size | 269mm*104mm |
| Cable length | 1.5 m (Length is available from 0.3m ~ 4.0m) |
| Rated voltage | 110V ~ 240V AC |
| Rated current | 10 ~ 13 Amp |
■ Structure chart :
■ Key Features :

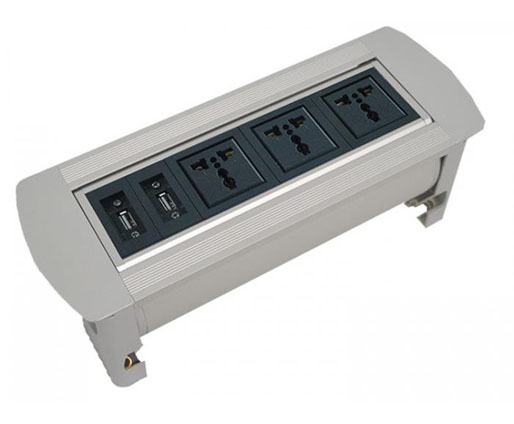

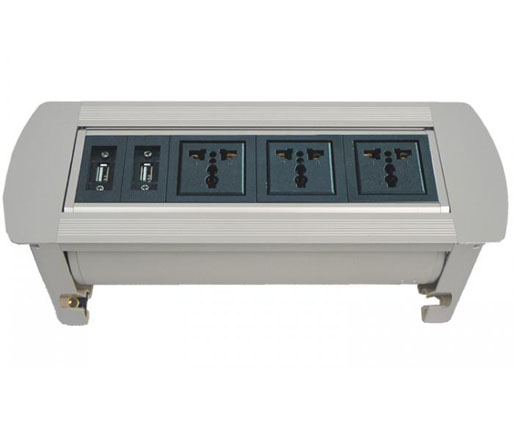

OPENED

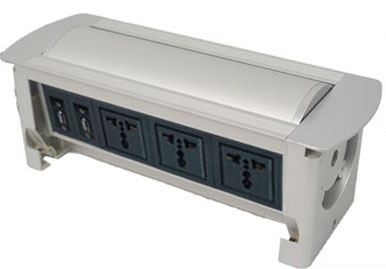

ROTATED

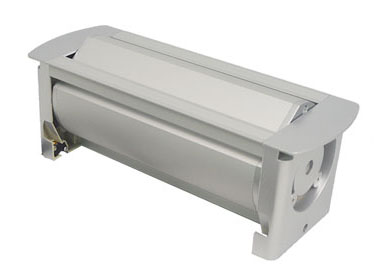

CLOSED

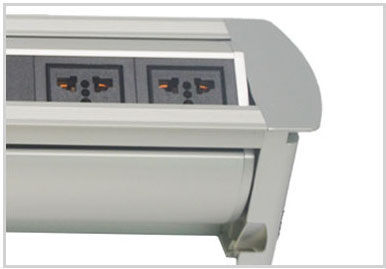

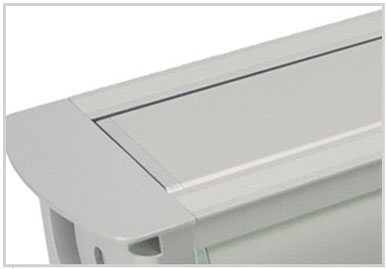

Surface Panel
Material : Brushed Aluminum alloy
Color : Flush Silver / Black / Silver
Rotator Socket
Manual drive rotator for 180
Come out Cables
Come out with 1.5m cable, support different kind of power plug according to the customer’s requirement.

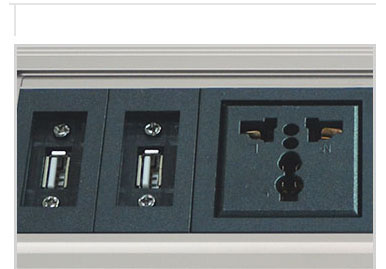

Configuration
support with different kinds of configuration as the customer’s requirements, The configuration can reach as much as 13 pcs .
