Motorized rotate flush mounted table power outlet EK9813UK

EK9813UKModel No
Table Flip up SocketType
Tabletop hidden motorized rotating power outletsStyle
Aluminum alloy surface panel + plastic hangerMaterial
Motorized rotateRotation Type
1* wireless charger+1*UK power+ 2* USB charger+ 1*network
(could be customized)
180 degreeOverturn angle
442mm × 120mm × 2mmPanel size

3 mm
Panel thickness
345mm × 102mm × 98mmCutout size
1.5 m (Length is available from 0.3m ~ 4.0m)Cable length
110V ~ 240V ACRated voltage
10 ~ 13 AmpRated current

Product Description :

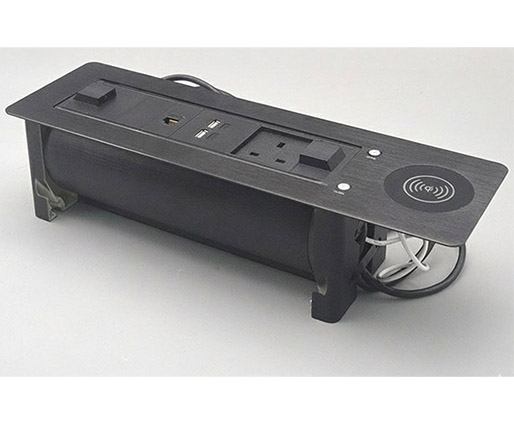

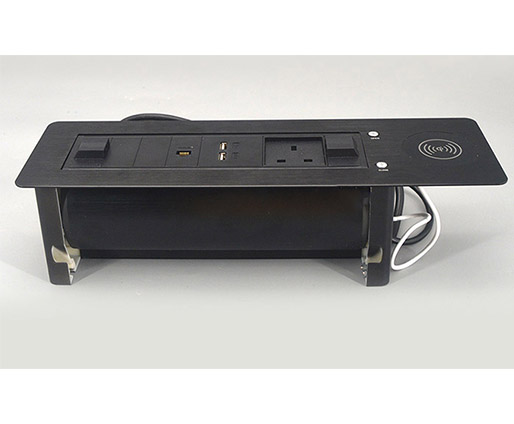

Motorized rotate flush mounted table power outlet EK9813UK

EK9813UK table power outlet is designed as an motorized flip up socket socket with muti-functional configuration,
It is a hidden equipment as it is mounted on the tabletop to use and hidden into table when it is not be used.
Motorized rotate with 180 degree overturn angel, the socket is fliped up on the tabletop once control by the press button switch.
With the wireless charger connector, users could put the mobile on the charger to charge directly without wire.
For your selection, it also have USB charger connector for charging the mobile or other equipment by USB wire.
Other configuration of universal power socket, RJ11 telephone and RJ45 network plug,
Modular design can change to different modules as per your requirement.
It is a smart socket to make the electrical equipment connect easliy and conveniently.
Cover by the full aluminum alloy material, the socket is stable and good quality.

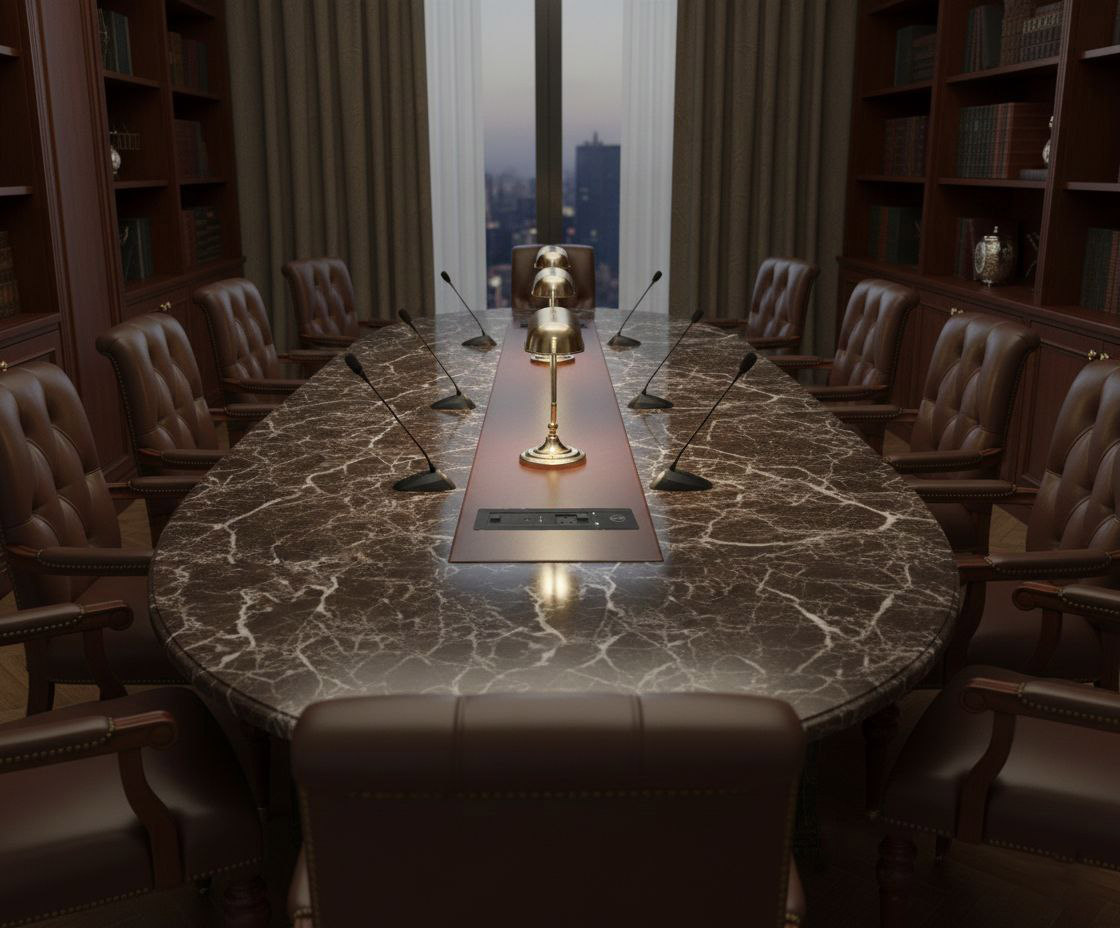

It’s widely used for the high-tier office table, conference room table AV solution, hotel room and training room.

Seiling Point:
1.Motorized flip up by motors, convenient to control .
2.With wireless charger, change the traditional charger power code for charging .
3.Hidden design to save more space and makes a modern office environment
4.Competitive price and high quality .
5.Supply with double USB power charger(5V, 2.1A) .
6.Made by Aluminum alloy material, which is corrosion resistant, wear-resistant, smooth surface and not easy to scratch .
7. The modules can be customized as the customer’s requirement .
8. Cable length are available with different length to 1.0m ~ 5m.
9. Changeable configuration with different modules for selection : HDMI, VGA, USB, Network, Audio, Video, Mic, RCA, power switch .
10. Easy installation, just cut out a square hole on the table and install the socket accordingly.

How to install and operation:
1. Cut out a properly square hole on the table;
2. Put the socket into the square hole, the connection cable hidden under the table;
3. Connect the power code, manually flip up 180 degree to use .
4. Press the green touch button if use, the product will rotate 180 degree to the desktop.
5. Press the red touch button if unused, the product will rotate 180 degree to hide under the table.
