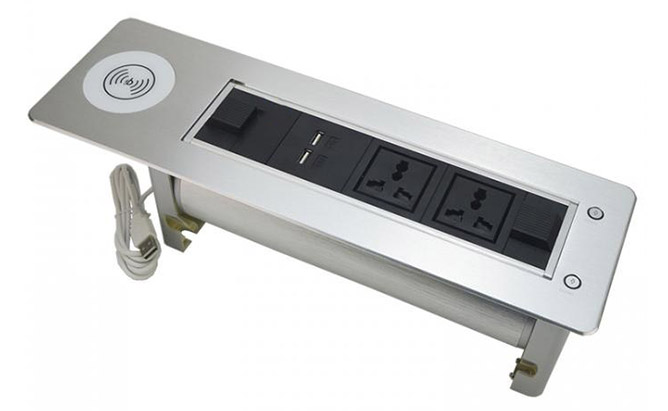

Aluminum Alloy Electrical Flip Up Socket with double USB charger EK9805

■ Introduce :

DA-EK series Electric Desktop socket is an innovative solution to provide electric, data and other AV interfaces on desktop office furniture. EK series Electric Desktop Socket is powered by an electric drive motor that rotate the sockets to the hidden position when unused. A photoelectric eye inside electric desktop socket will prevent rotation if there was an obstruction on the top of electric desktop socket during working.

■ Sailing Point :

Electric Desktop socket offer outlets for accessibility to electric, internet, telephone, VGA, HDMI,3.5 Audio, USB, MIC and could be customized for other data and AV interfaces.
Electric Desktop socket rotate all sockets to the hidden position by press the touch button, to provide a clean and elegant surface of worktop. Also Electric Desktop socket prevent accidental spillage of fluids into the product.
A photoelectric self-lock device inside the Electric Desktops Socket prevent sockets from rotating if one of socket units is plugged. Also prevent cable damage and hand jammed during operation.
Electric Desktop Socket contain an electric drive motor, ensure reliable rotation and the ability to orient itself to the proper position.
high quality aluminum alloy finishing with motor
white/black/gold color is available for color selection
Power plug and voltage could be changed accordingly.
Customized made is available

■ How to install and operation:

Cut out a properly square hole on the table;
Put the socket into the square hole, the connection cable hidden under the table;
Connect the power code, manually flip up 180 degree to use .

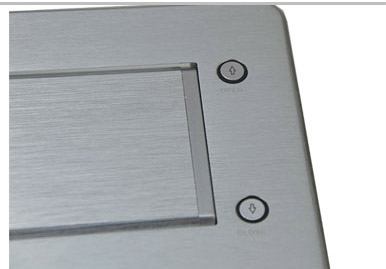

Press the green touch button if use, the product will rotate 180 degree to the desktop.
Press the red touch button if unused, the product will rotate 180 degree to hide under the table.

■ Detail Parameter

Model No.	DA-EK9805
Type	Table Flip up Socket
Style	Tabletop hidden motorized rotating power outlets
Material	Aluminum alloy surface panel + plastic hanger
Color	Silver / Black
Rotation Type	Motorized rotate

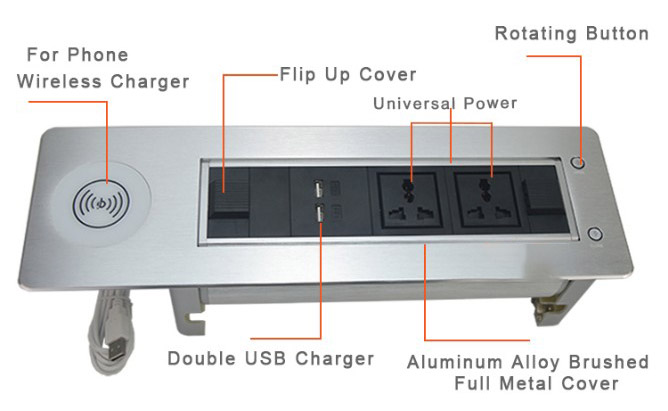

Configuration	1* wireless charger+2Universal power +2*USB charger (could be customized)
Overturn angle	180 degree
Panel size	350mm×130mm×2mm
Panel thickness	3 mm
Cutout size	335mm×115mm×103mm
Cable length	1.5 m (Length is available from 0.3m ~ 4.0m)
Rated voltage	110V ~ 240V AC
Rated current	10 ~ 13 Amp
