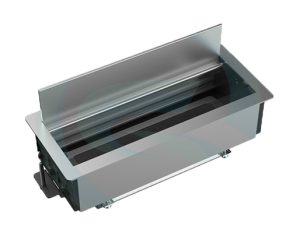

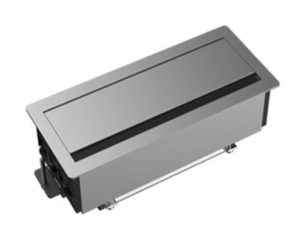

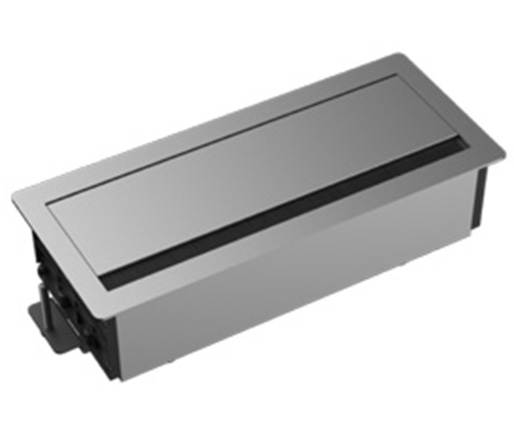

STS-6/4/S Series Recessed Flip-up Desk Outlet

Part No : STS-6-4/S
Recessed Flip-up Desk Outlet
Version : 4 Way
Module Capacity : 8 Type 45 series modules

■ Overview

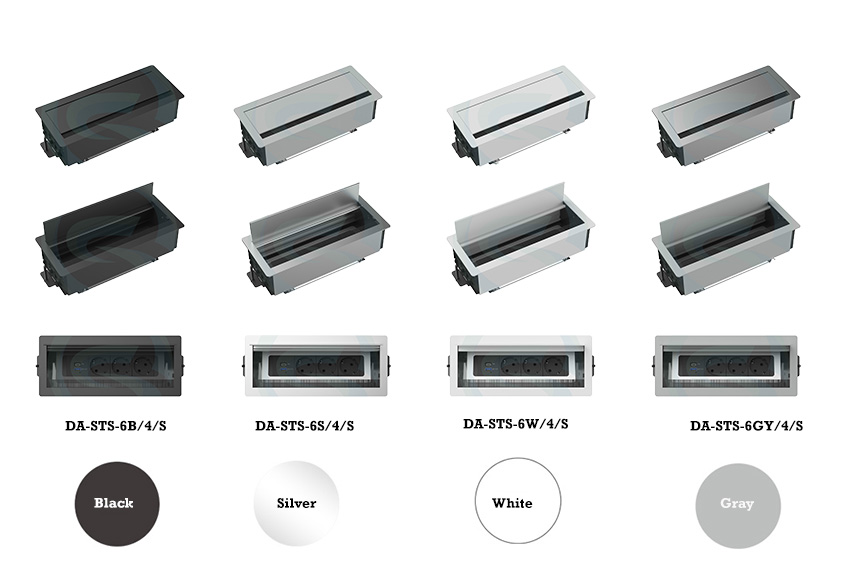

■ Color’s

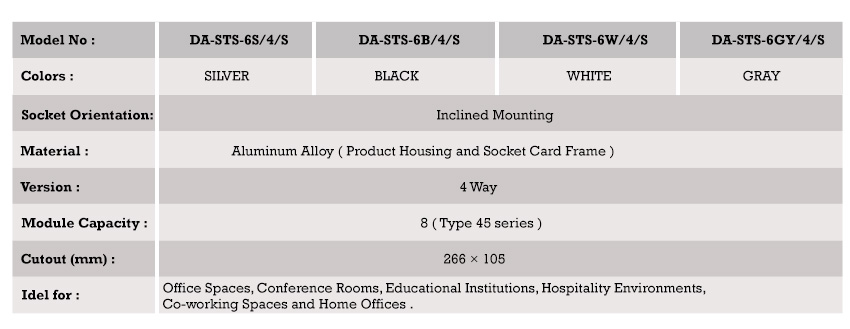

■ Specifications :

■ Structure chart :

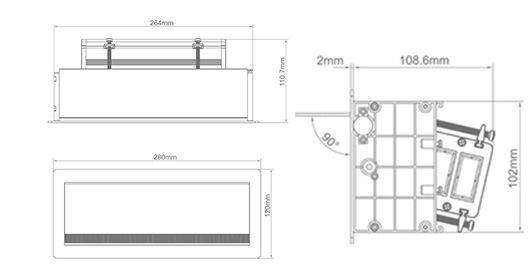

■ DIMENSIONS :

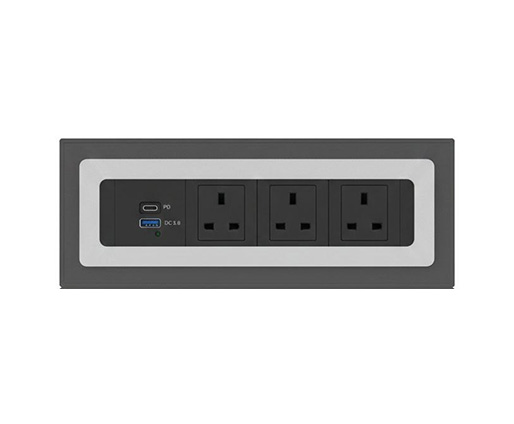

■ EXTENSIVE RANGE OF MODULE OPTIONS :

■ To Know more about the modules compatibility, please contact our sales representative .

■ Product images are illustrative purposes only and may differ from the actual product .

■ Key Features :

Sleek, contemporary appearance :
The combination of the sleek aluminum profile and rounded corners gives the design a clean and neat appearance, and the shape makes it the perfect workstation outlet for all your home or office needs .

Cable pass-through with brush seal :
Equipped with brush seal which allows cables to pass through the unit whilst in the closed position and prevents dust infiltration .

Flip-up cover design with self-damping and slow descent :
The flip-up cover with can be opened 90 , and When closing, it is damped and descends slowly. The cover panel easily flips opens providing better access to multiple outlets , creating a more functional and organized desk .

Two mounting methods are available :
The product can be mounted using either a mounting bracket for any material desk with a thickness between 10-60 mm, or by self-tapping screws for wooden desk, making it suitable for a variety of installation scenarios .

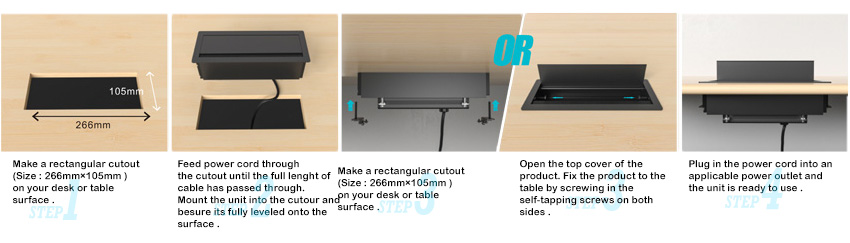

■ Installation Steps :
