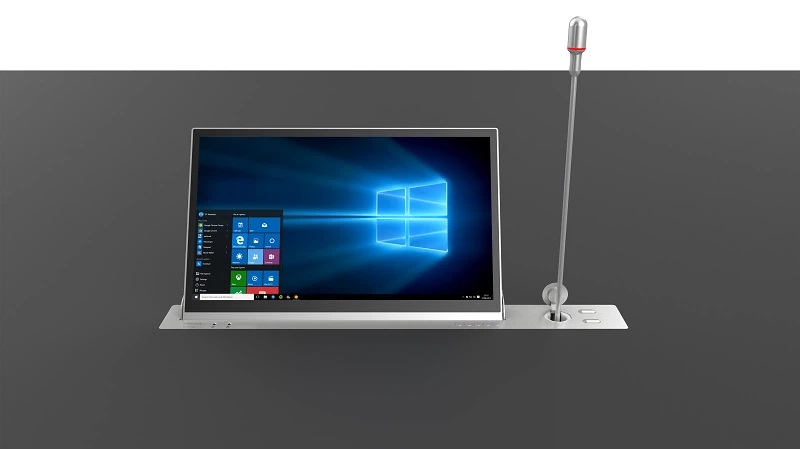

19″ Motorized Retractable Monitor With Nameplate And Microphone
Details
Name : Motorized Retractable Monitor With Nameplate And Microphone
Model :AX-19MG
Screen size :18.5”
Weight :21kgs
Dimension :720*795*185mm
Description

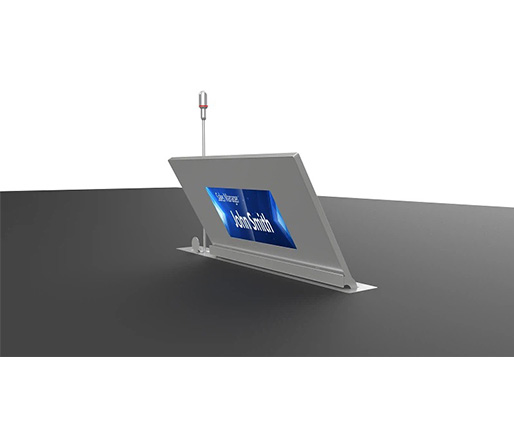

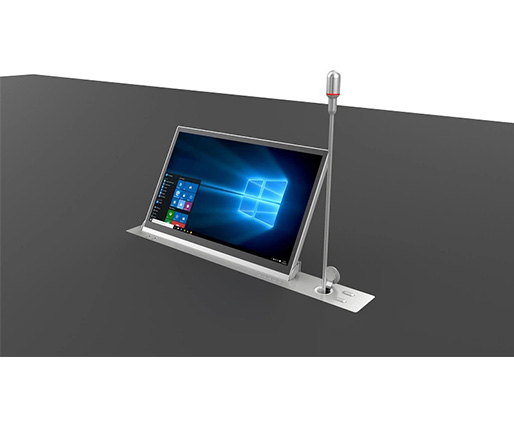

The screen size of the 19″ Motorized Retractable Monitor With Nameplate And Microphone is 18.5″, and the tilting angle of monitor is motorized adjustable 0-25°.It features the largest screen size available in the series, an automatically calibrated microphone, and complimentary nameplate software, ensuring precise and efficient meeting experiences.
The 19″ Motorized Retractable Monitor With Nameplate And Microphone is equipped with the largest 18.5″ anti-glare screen in the series, an integrated electrically adjustable microphone system, supporting 0-25° electric tilt angle adjustment, and multi-motor technology for separate control of the screen and microphone. It is suitable for multi-modal scenarios such as presentations, collaboration, and remote meetings. It is equipped with self-calibrating noise-canceling microphones, enhancing the precision of directional pickup. Combined with the free label software, it allows for customizing attendee information and agenda status. The main and secondary screens are intelligently linked to create an immersive conference interaction. The wide viewing angle and high-definition display ensure no blind spots for content sharing among multiple people. With a tripartite solution of “large screen focus + precise pickup + digital identification”, it breaks through the inefficiency bottleneck of traditional conference equipment.
Specification
Display
| Screen size | 18.5 inch |
| Matrix type | IPS |
| Resolution | 1920*1080 |
| Brightness | 250cd/㎡ |
| Contrast ratio | 1000:1 |
| Aspect ratio | 16:9 |
| View angle | 89/89/89/89 |
| Backlight lifespan | 30000 hours |
| Response time | 10(Typ.)(Tr+Td)ms |
| Screen tilt | 0-25°motorized adjustable |
| Touch (if have) | 10 point capacity |
Display
| Screen size | 10.1 inch |
| Resolution | 1024* 600 |
| Brightness | 300cd/mf |
Microphone
| Compatible | Telepic/Bosch/Sennheiser Shure/Audio-Technical subject to order |
Microphone
| Signal input | HDMI+ VGA |
| Data input | USB 3.0 |
| Touch input(if have) | USB |
| Terminal block | PC switch + signal switch |
| Protocol | RS485 |
| Power supply | AC 220V~250V 50~60Hz |
| Power consumption ! | < 60W |
| Power loop | 600W max. |
Mechanism
| Cover plate | anodized aluminum |
| Finishing G.W. | black/ silver, matt/brushed customization available 21kgs |
| Packing dimension | 720* 795*185 mm |
| Temperature | working 0°C~ + 50°C,storage -20°C~+ 60°C |
| Humidity | working≤90%, storage≤90% |
Accessory
| Power cord | RS485 control cable |
Control
| Manual | RS485 | antenna(optional) |
