17″ Motorized Foldable Monitor
Details
Name: Motorized Foldable Monitor
Model: SFZ-17D
Screen size:17.3″
Weight:13kgs
Dimension: 670*510*230mm
Description

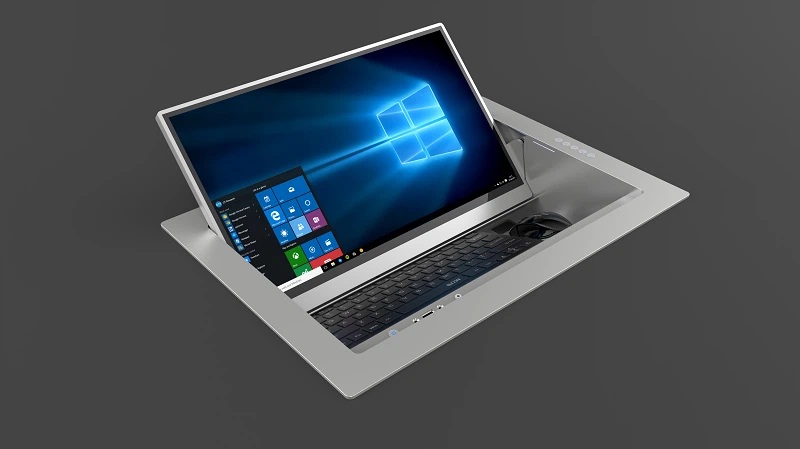

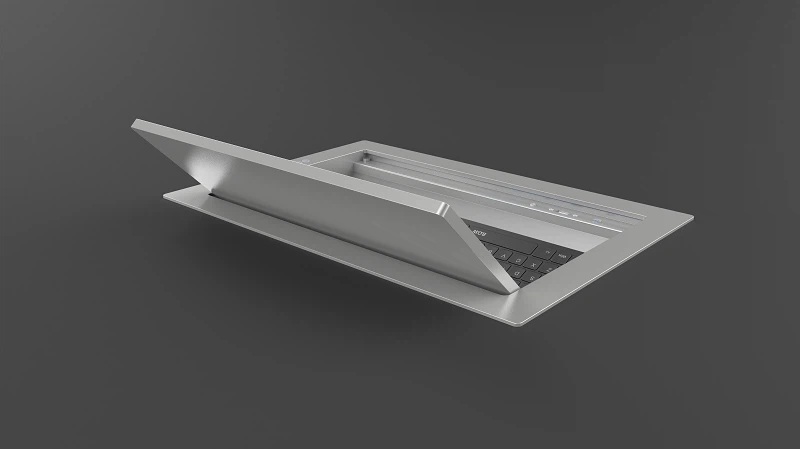

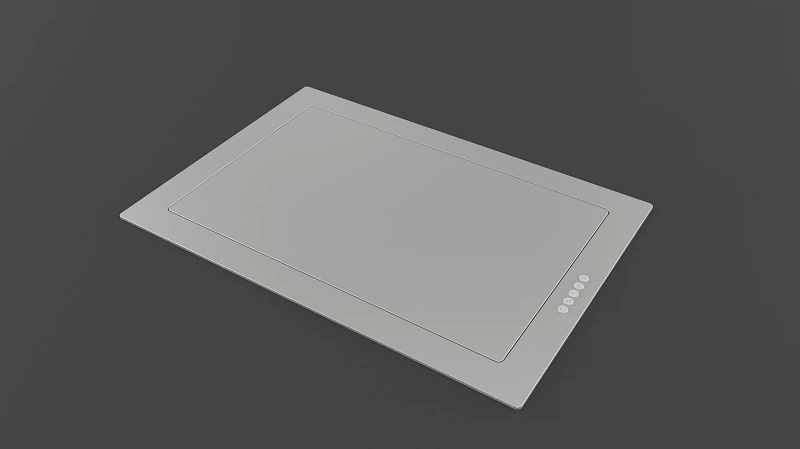

The screen size of the 17″ Motorized Foldable Monitor is 17.3″, the capacitive touch screen , host, keyboard, mouse are optional . The tilting angle is motorized adjustable 0-135°. It’s foldable screen comes with a appearance of the closeable notebook computer with keyboard and mouse, and it is used like a hidden integration device. The monitor can be automatically hidden inside the tabletop when it is not under use.It provides an efficient solution and enjoyable experience of conference communication, especially for sharing the enormous data information.It also build us the modern and energy saving surroundings of paperless conference system.
The 17″ Motorized Foldable Monitor is centered around a 17.3″ capacitive touchscreen. It innovatively adopts a notebook form folding design, integrating an electric 135° continuous tilt adjustment function, and supporting multi-modal switching from desktop flat presentation to vertical touch collaboration. The body is equipped with a hidden lifting structure, which can be automatically retracted into the table during non-meeting periods. The keyboard and mouse also have dedicated hidden spaces, significantly reducing space occupation. The screen is treated with anti-glare technology, combined with intelligent meeting functions, it can efficiently and concurrently process multi-source information flows such as data reports and dynamic charts. Through the paperless meeting system, document cloud synchronization and real-time annotation are achieved, building a complete ecological chain from hardware deployment to low-carbon collaboration, providing a solution with both professionalism and spatial aesthetics for high-density data scenarios.
Specification
- Display
| Screen size | 17.3 inch |
| Matrix type | IPS |
| Resolution | 1920×1080 |
| Brightness | 250cd/㎡ |
| Contrast ratio | 800:1 |
| Aspect ratio | 16:9 |
| View angle | 85/85/85/85 |
| Backlight lifespan | 15000 hours |
| Response time | 16(Typ.)(Tr+Td)ms |
| Screen tilt | 0-135°motorized adjustable |
| Touch (if have) | 10 point capacity |
- Electronical
| Signal input | HDMI*2 |
| Data input | USB 3.0 |
| Touch input(if have) | USB |
| Terminal block | PC switch + signal switch |
| Protocol | RS485 |
| Power supply | AC 220V |
| Power consumption | ≤40W |
- Mechanism
| Cover plate | anodized aluminum |
| Finishing G.W. | black/ silver, matt/brushed customization available 13kgs |
| Packing dimension | 670* 510*230 mm |
| Temperature | working 0°C~ + 50°C,storage -20°C~+ 60°C |
| Humidity | working≤90%, storage≤90% |
- Accessory
| Power cord | RS485 control cable |
- Control
| Manual | RS485 | antenna(optional) |
